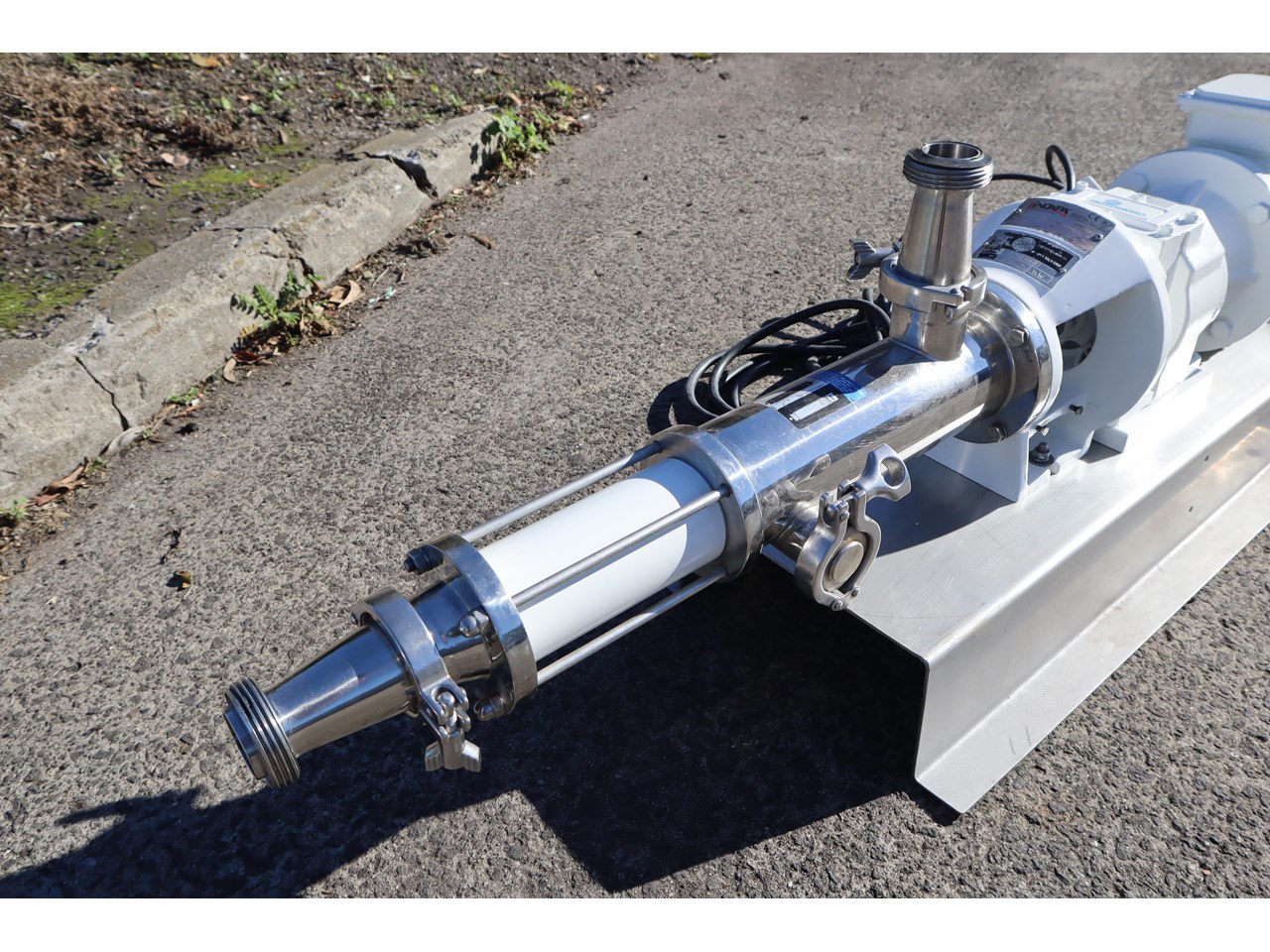

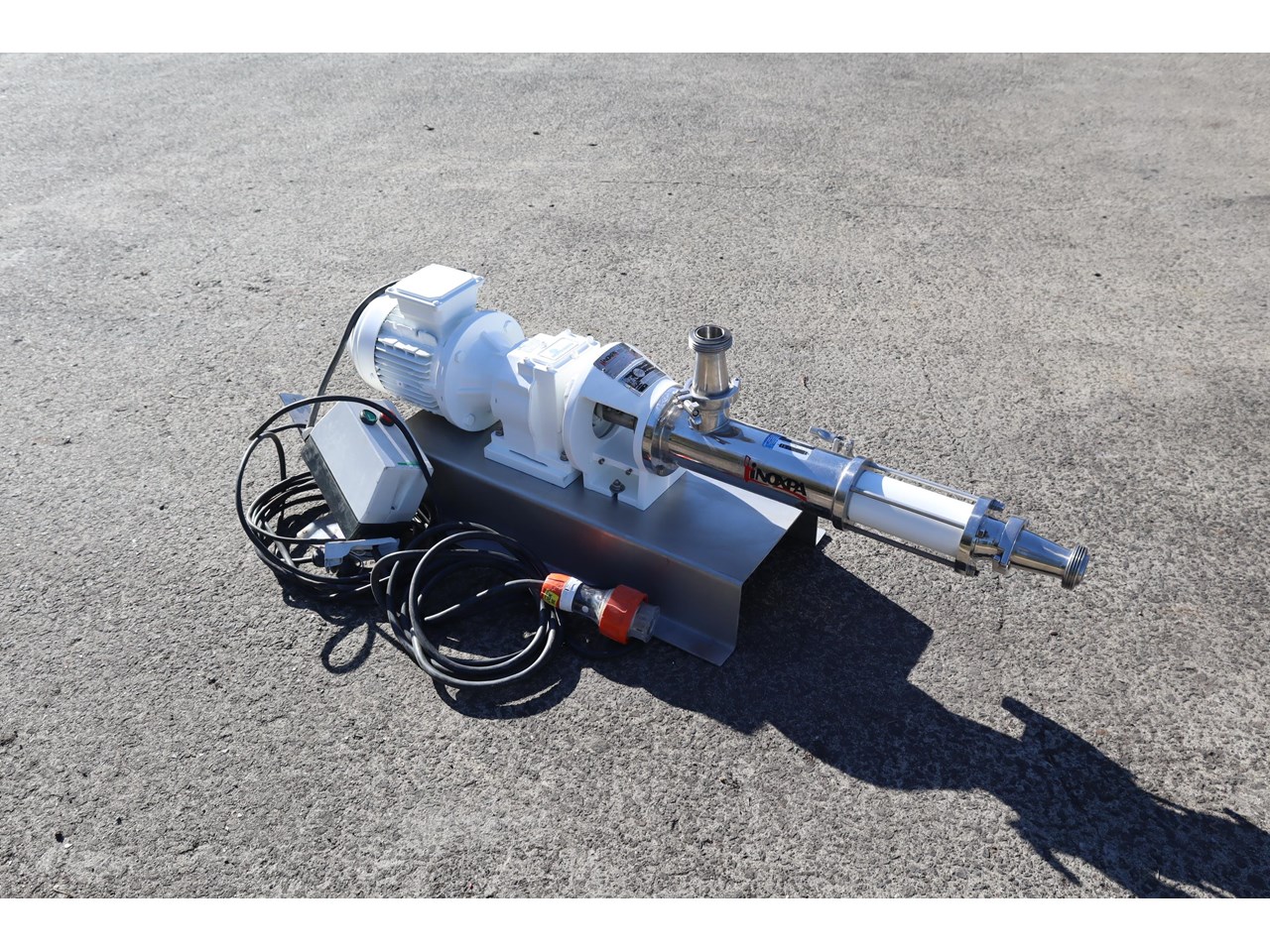

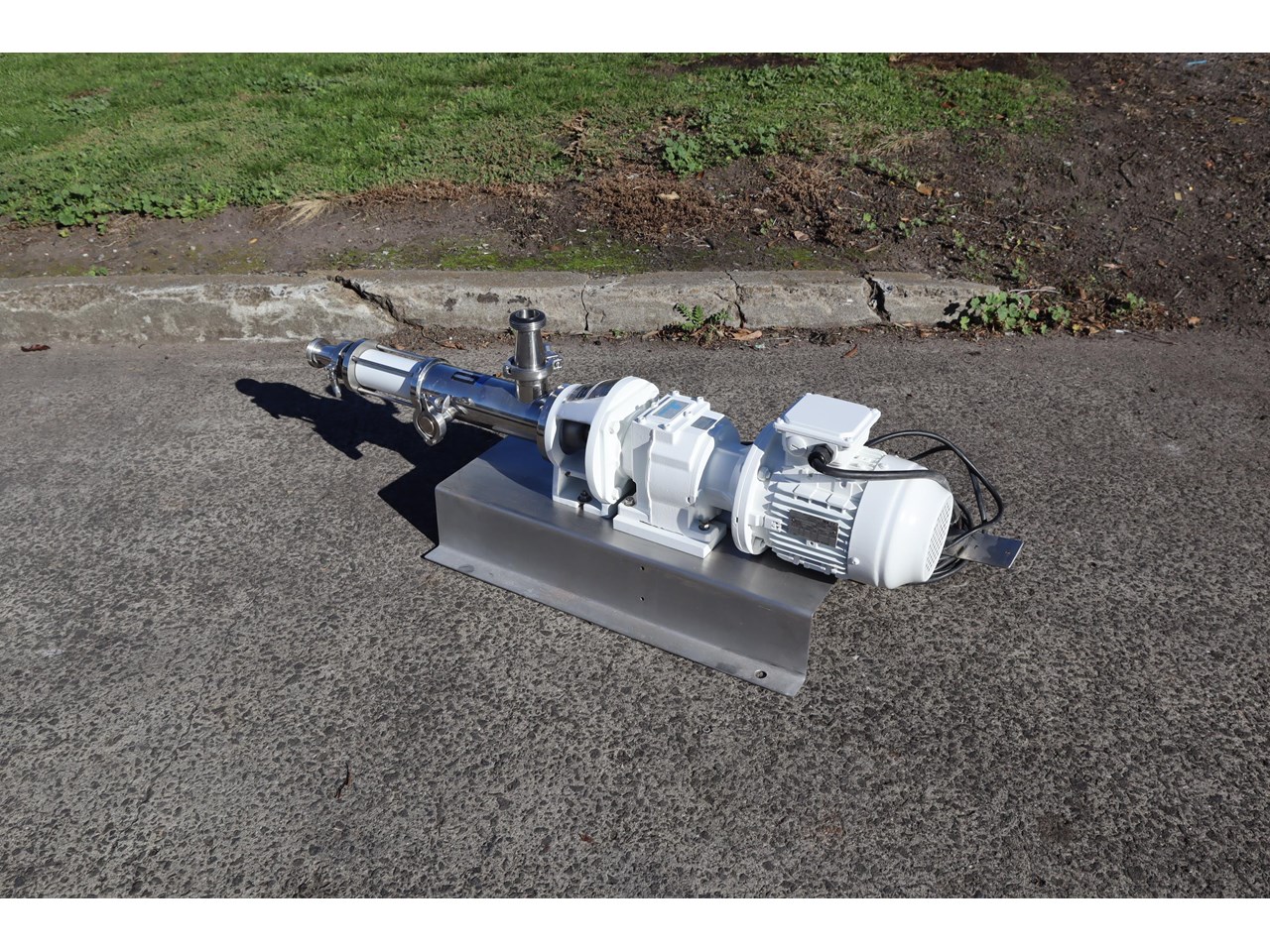

INOXPA KSF-25 STAINLESS PROGRESSIVE CAVITY PUMP

The KS/KST/KSF pumps are sanitary progressive cavity pumps. Due to the design, they are self-priming and reversible pumps that can suction from a maximum height of 7 meters. These types of pumps transfer products of low and high viscosity as well as products containing particles.
They are widely used to pump edible oils, wine, concentrates and beverages in general as well as viscous food products such as jam and marmalade, pasta, pâté, melted cheese, etc. In the cosmetics industry, these pumps are used in applications involving various cosmetic products such as soap, gels and creams.

Operating principle
Friction between the rotor and the stator creates a vacuum in the inlet area thereby helping the entry of the product into the pump.
The turning motion of the rotor makes the cavities between the rotor and the stator move forward and transport the product to the outlet.

Material
Parts in contact with the product: AISI 316L
Other stainless steel parts: AISI 304
Lantern and bearing support: GG-25

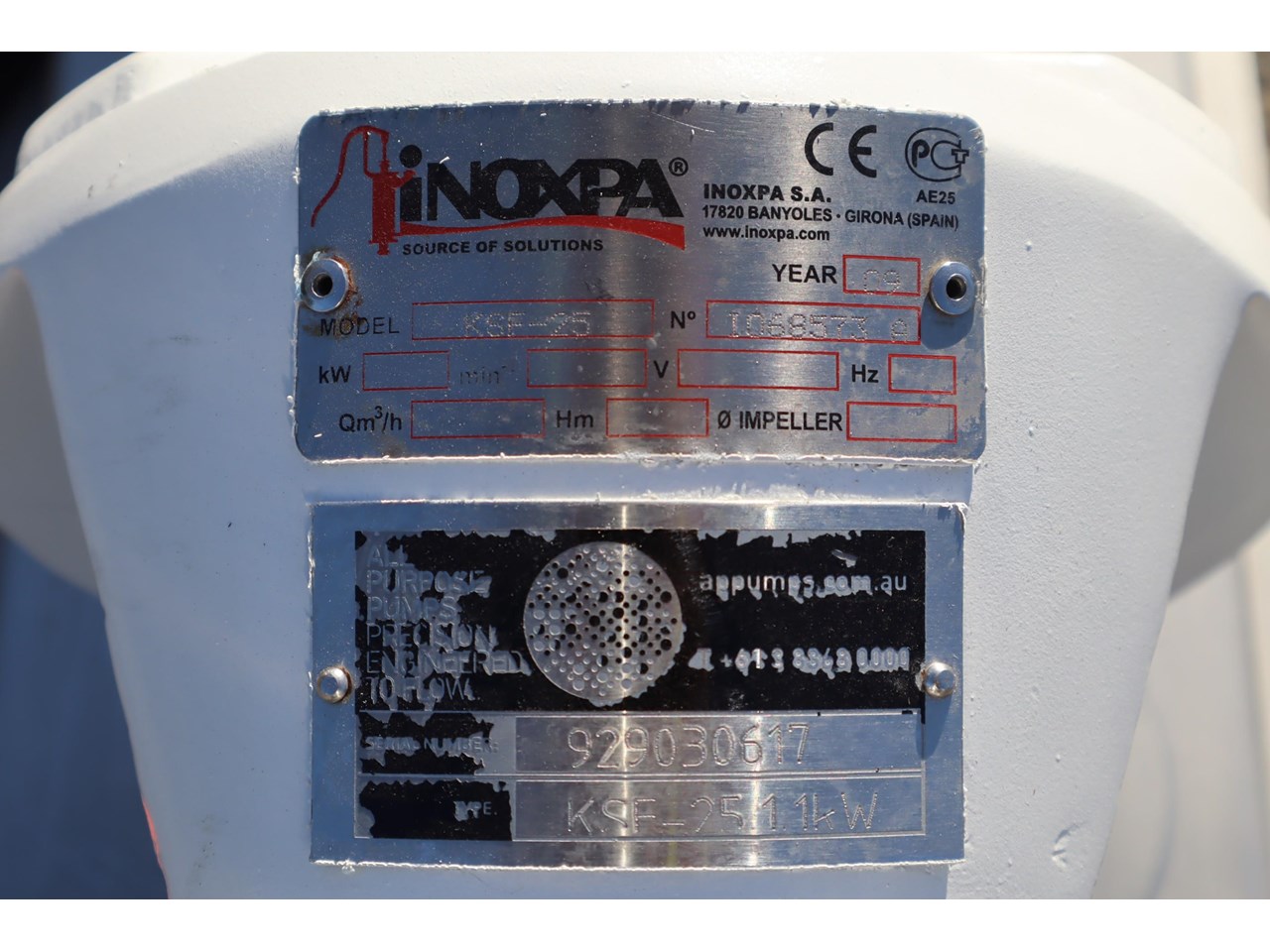

Make: Inoxpa
Model: KSF-25
Year: 2009
Made in Spain

Capacity @ 100 rev: 6.1L
Maximum Output: 3.5 m3/h
Maximum Pressure: 6 Bar

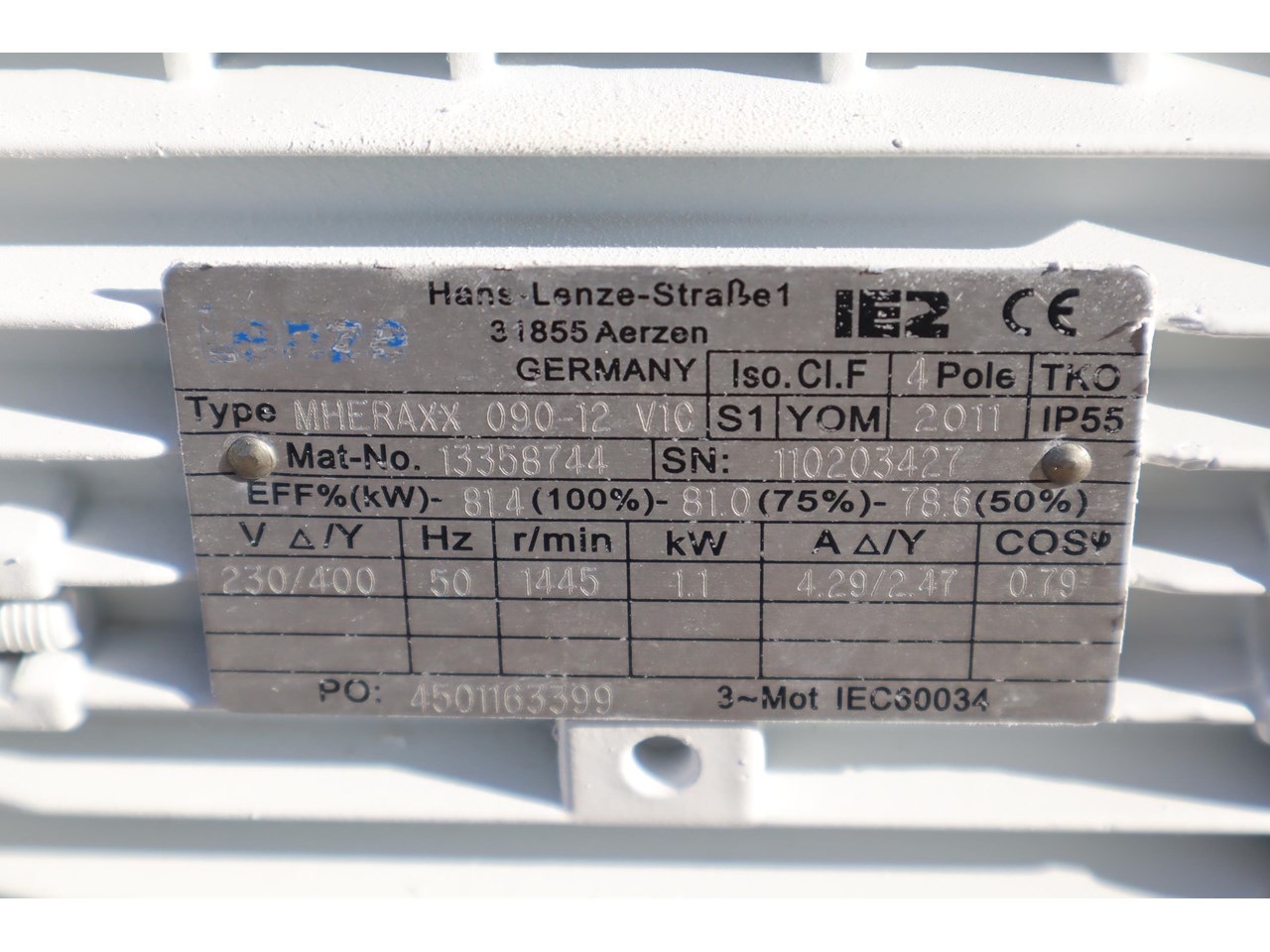

Voltage: 415V 3 Phase

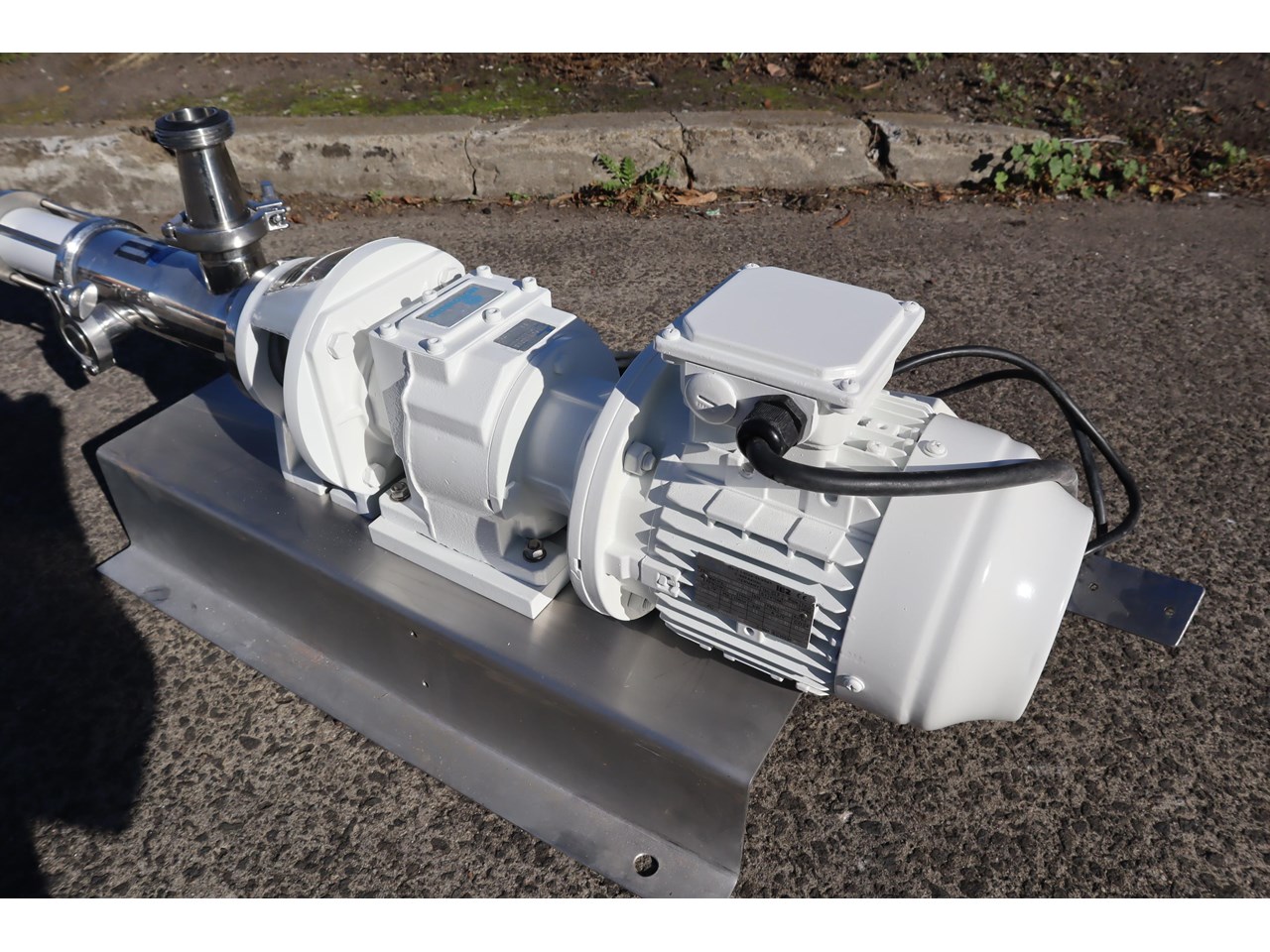

Motor Power: 1.1kW

Inlet/Outlet Diameter: 35mm

Overall Dimensions (mm): 1210 x 350 x 420 H
